Compatible gateway
USR-DR134
Wired Ethernet gateway

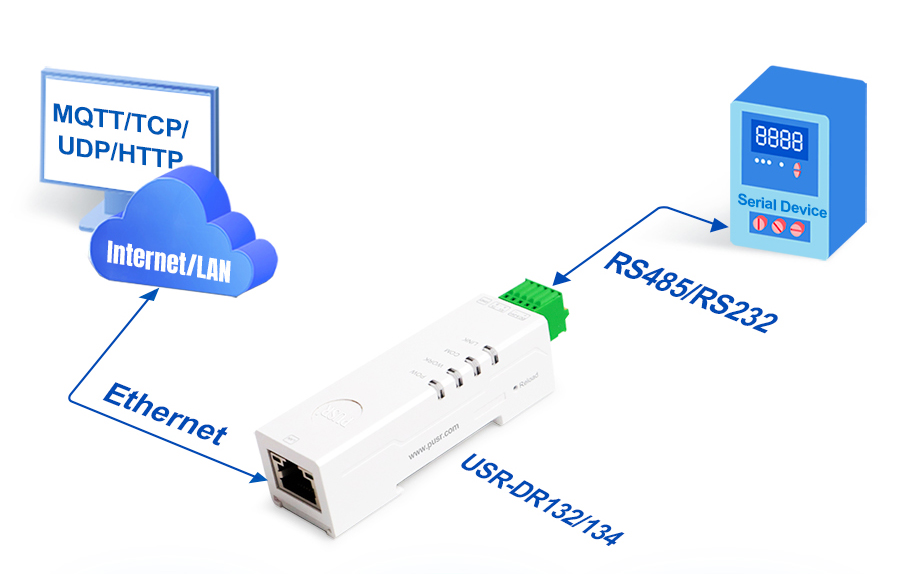

Converts RS485/Modbus RTU to Ethernet, so a chiller or probe on your site reaches Phoenix over a stable, always-on wired connection. DIN-rail mount, hardware watchdog, −40…+85°C.
Sign up to order Manufacturer pageHow it connects
Key features

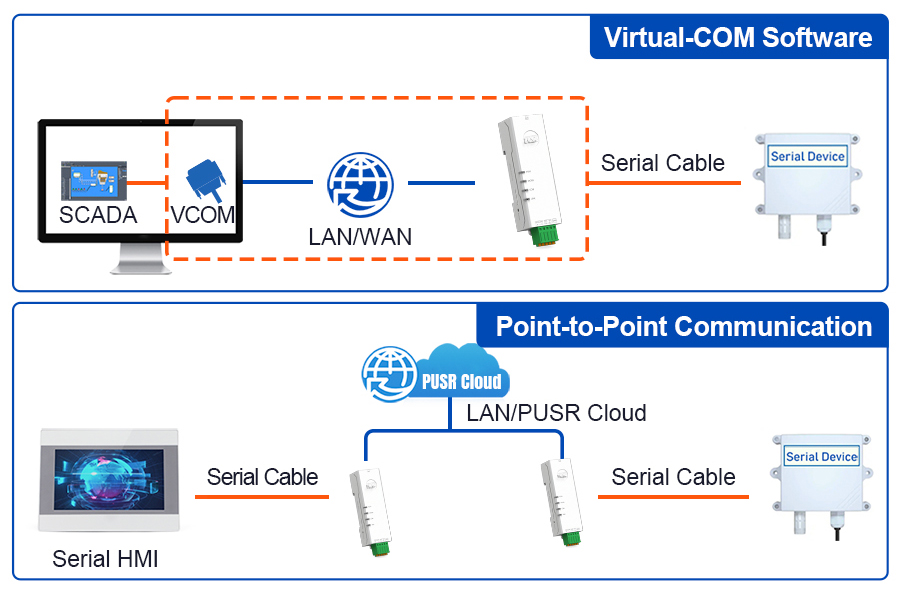

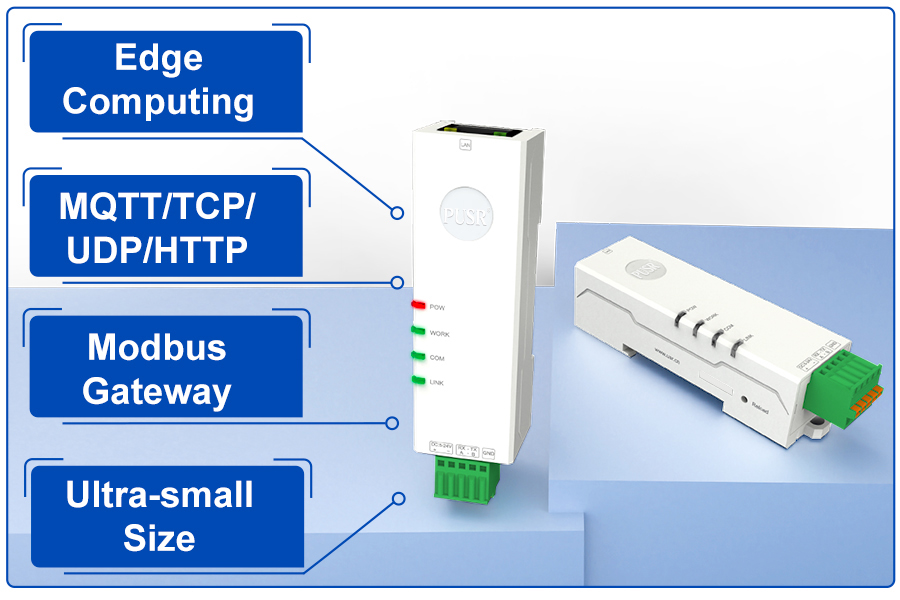

- Transparent RS485/Modbus RTU to Ethernet conversion

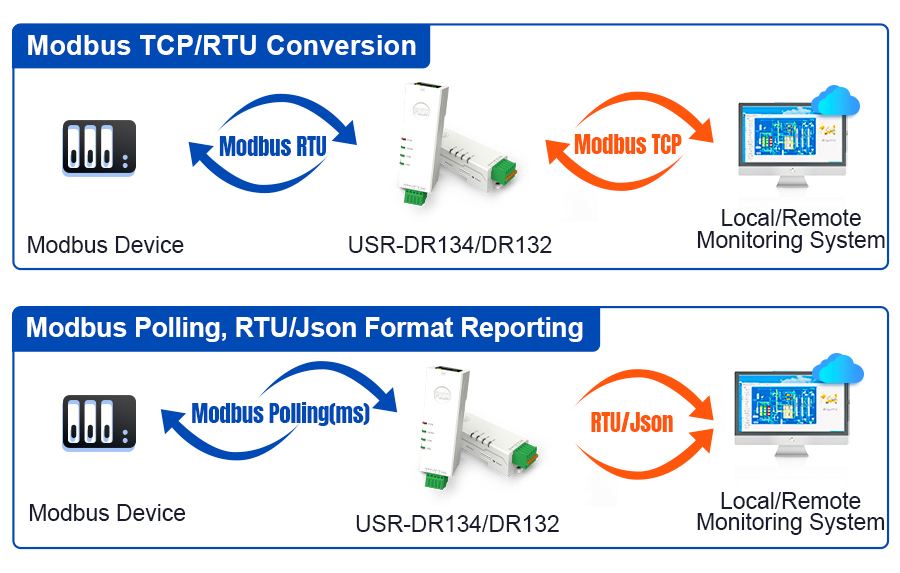

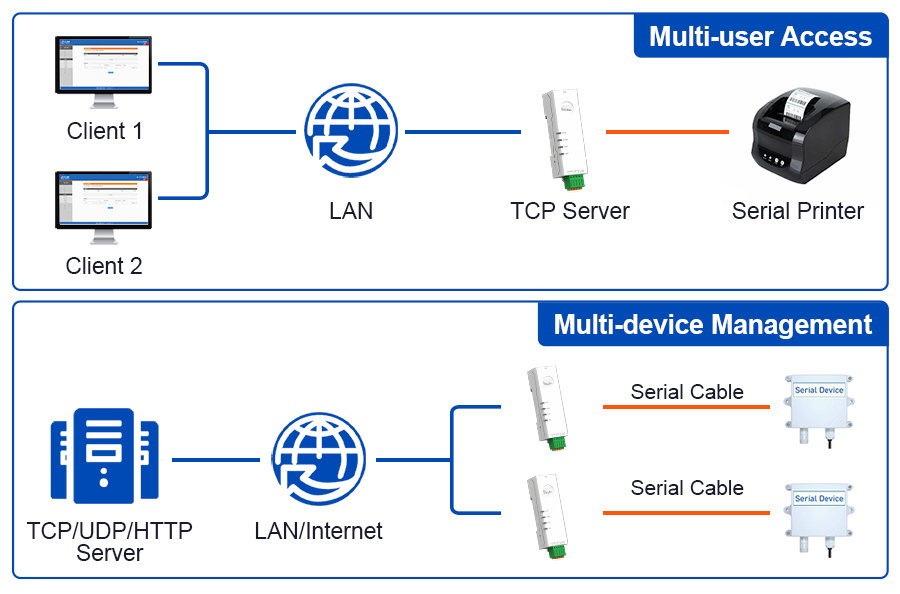

- Modbus RTU/TCP gateway with polling and multi-host support

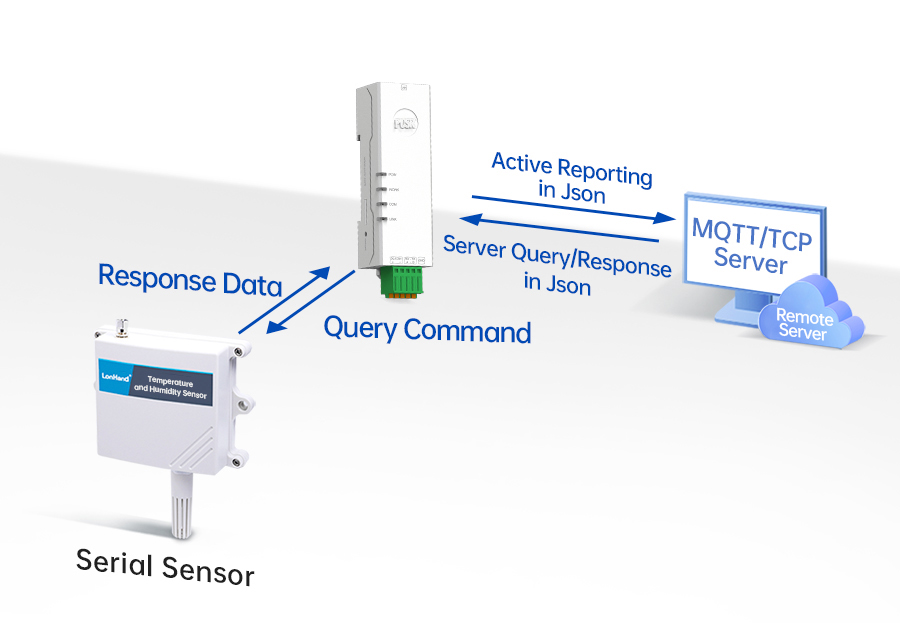

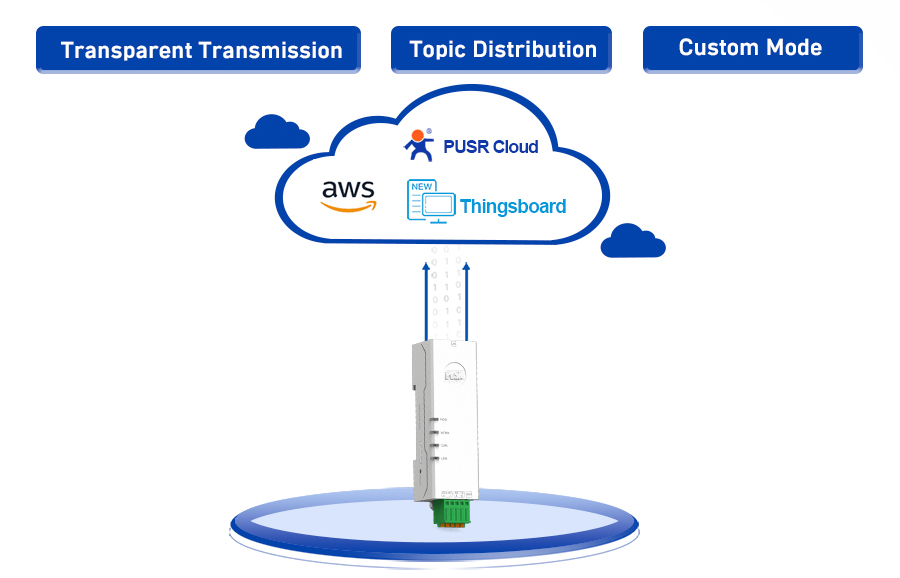

- Built-in MQTT client (up to 4 publish/subscribe topics)

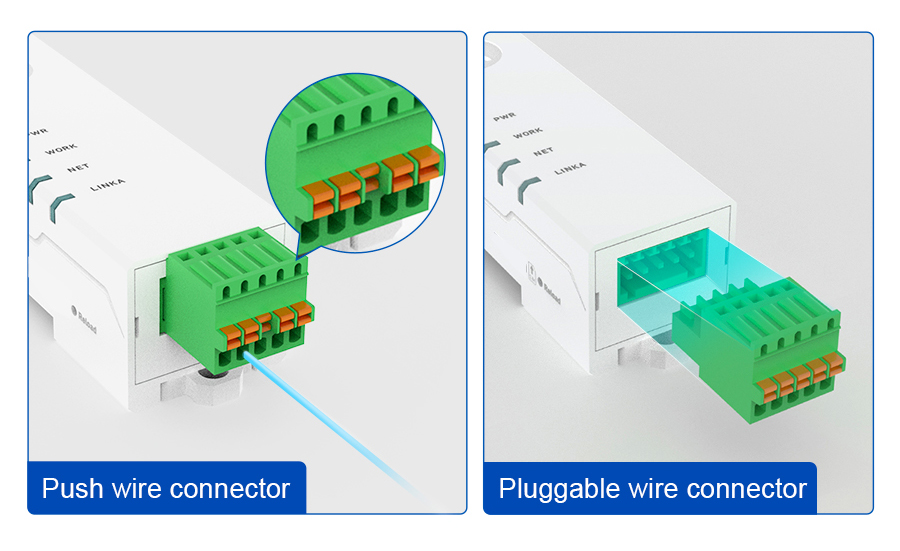

- DIN-rail mount with a push-type power connector
- Hardware and software watchdog with auto-reconnect
- Wide operating range and ESD/surge protection for cabinet installs
Technical specifications
| Connectivity | 1× RJ45 (10/100 Mbps) + 1× RS485 |
|---|---|
| Protocols | Modbus RTU/TCP, MQTT, TCP/UDP/HTTP |
| Power supply | 5–24V DC, ~97mA @ 5V |

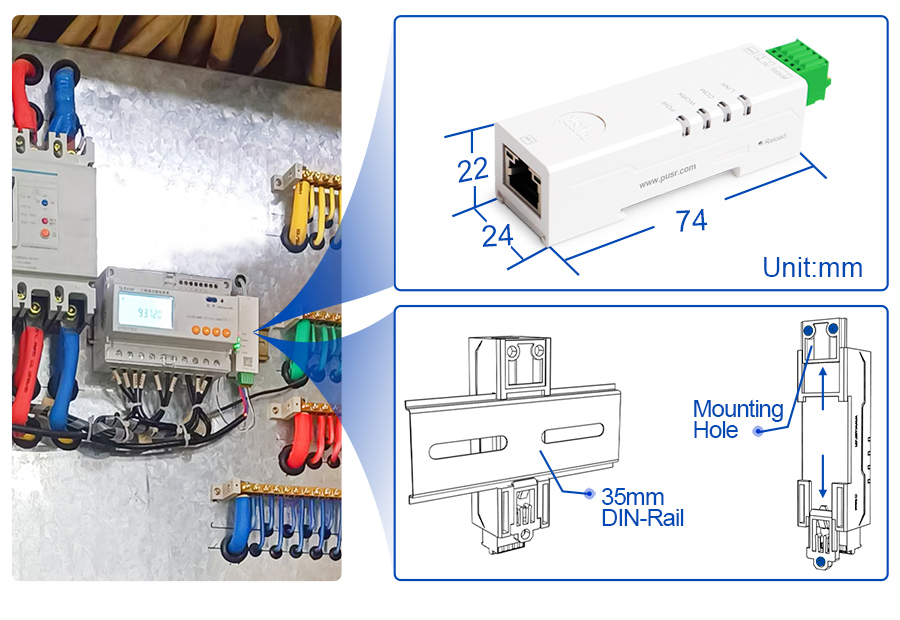

| Dimensions | 74×24×22 mm |
| Mounting | 35mm DIN-rail |
| Operating temperature | −40…+85°C |
| Reliability | Hardware & software watchdog, auto-reconnect, ESD/surge protected |
Full manufacturer specifications: pusr.com
